FD-18 series Floor Type Freeze Dryer, 6kg/24 hours, 0.18~0.27m2
Specifications
| Model |

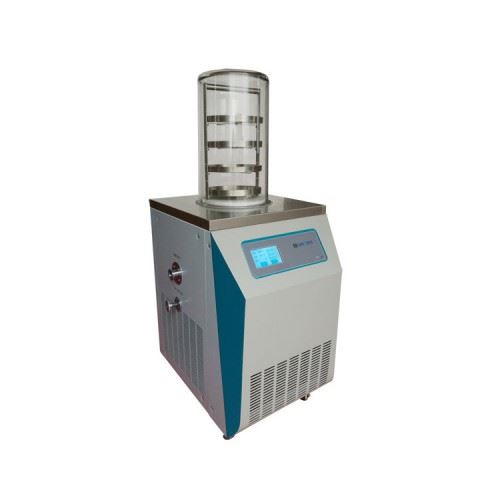

FD-18-R |

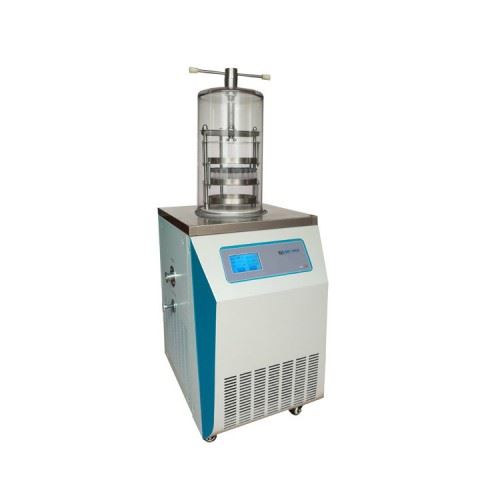

FD-18-MR |

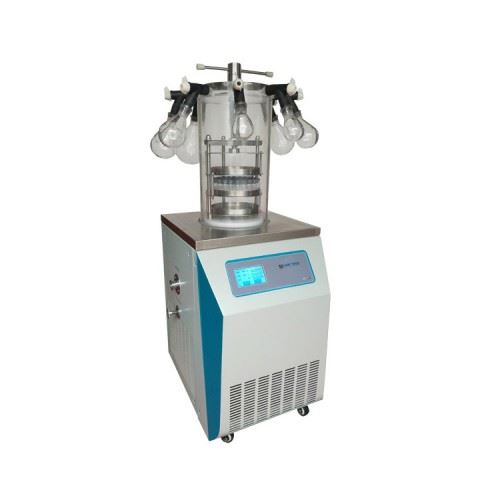

FD-18-TP |
FD-18-MTP |

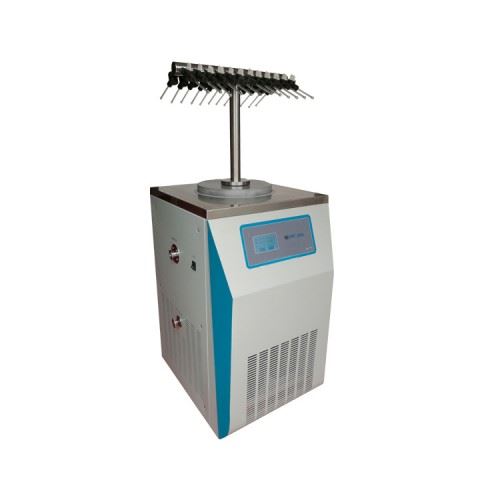

FD-18-MT |
| Dry chamber size (D*H) |
Ф300 × 445mm |
Ф300 × 465mm |
Ф300 × 540mm |
Ф300 × 570mm |
/ |
| Total shelf area |
0.18 m2
0.27 m2 |
0.18 m2
0.27 m2 |
0.09 m2 |
0.09 m2 |
/ |
| Shelf size (mm) |
Ф240 * 4pcs
Ф240 * 6pcs |
Ф240 * 4pcs
Ф240 * 6pcs |
Ф200 * 3pcs |
Ф200 * 3pcs |
/ |
| Shelf space height (mm) |
70
50 |
70
50 |
70 |
70 |
/ |
| Vials load capacity |
Ф12mm |
1320 Pcs
1980 pcs |
1320 Pcs
1980 pcs |
990 Pcs |
990 Pcs |
24 ports
T-manifold 430×480mm (H*L)
Flask rack: 610×600mm |
| Ф16mm |
740 Pcs
1110 pcs |
740 Pcs
1110 pcs |
555 Pcs |
555 Pcs |
| Ф22mm |
360 Pcs
540 pcs |
360 Pcs
540 pcs |
270 Pcs |
270 Pcs |
| Sample load capacity |
1.8L
2.7L |
1.8L
2.7L |
0.9L |
0.9L |
|
| Flask |
/ |
8 pcs |
/ |
8 pcs |
/ |
| Dry rack |
Included |
Included |
Included |
Included |
/ |
| Cold trap rack |
Included |
Included |
Included |
Included |
Included |
| Condenser Temp. |
<-60°C (-80°C or even lower is optional) |
| Cold trap size |
Ф270 * 400 mm (Depth * Height) |
| Ice capture capability |
6 Kg/24h |
| Cold type |
Air-cooled |
| Defrost type |
Natural (Electric is optional) |
| Ultimate Vacuum |
<5 Pa |
| Vacuum pump |
Included |
| Pump rate |
4L/S |
| Power |
1400W |
| Voltage |
220v/50Hz or 110v/60Hz |
| Dimensions |
540×610×(963+445)(mm) |
| Weight |
170 kg |
185kg |
185kg |
195kg |
105 kg |
Specifications of vacuum pump
| Model |
2XZ-0.5 |
2XZ-1 |
2XZ-2C |
2XZ-4C |
2XZ-6C |
2XZ-8C |
2XZ-15C |
| Pumping Speed: L/S |
0.5 |
1 |
2 |
4 |
6 |
8 |
15 |
Ult.
Vacuum
Pa |
Without gas ballast |
≤6×10-2 |
| With gas ballast |
≤6.5 |
≤1.33 |
| Speed: r/min(50HZ) |
1400 |
| Power Required: Kw |
0.18 |
0.25 |
0.37 |
0.55 |
0.75 |
1.1 |
1.5 |
| Diameter of inlet port: mm |
16 |
16 |
25 |
25 |
40 |
40 |
40 |
| Temp. rise of pump oil: °C |
≯40 |
≯45 |
≯45 |
≯65 |
≯70 |
| Oil capacity: L |
0.60 |
0.70 |
0.10 |
1.2 |
2.0 |
3.0 |
4.0 |
| Overall Dimensions: mm |
447
168
260 |
469
168
260 |
514
168
282 |
514
168
282 |
565
200
342 |
650
240
430 |
770
240
430 |
| Weight: kg |
16 |
17 |
20 |
22 |
40 |
60 |
75 |
Standard Configuration
– Stainless steel condenser with opening, stainless steel operation tops, seamless welding with round corner which is anti-corrosion and easy to clean
– Stainless steel shelf & rack, 4 or 6 pcs shelves optional, shelf removable and spacing height adjustable
– Stainless steel pre-cooling rack with metal cover
– Integrally molded glass dried barrel adopted special plastic will not break
– Used SECOP (DANFOSS) quality compressor, high performance condenser fan, LCD touch display, history data can be stored, searched and exported to computer.
| Model |
R |
TP |
MR |
MTP |
MT |
| Description |
Normal type |
Stopper device |
Stopper + flasks |
Flasks system |
Multi-ports manifold |
| Freeze Dryer |
● |
● |
● |
● |
● |
| Glass barrel |
● |
● |
● |
● |
|
| Vacuum pump |
● |
● |
● |
● |
● |
| Stoppering device |
|
● |
|
● |
|
| Manifold Ports |
|
|
8 ports (28/ 32mm), each 2 in
1000ml, 500ml, 250ml, 100ml |
12 or 24 ports |
Optional List
| Item No. |
Item Name |
Item No. |
Item Name |
| FD1001 |
-80°C Condenser |
FD1009250 |
250ml flask |
| FD1002 |
RS232 & Software |
FD1009500 |
500ml flask |
| FD1003 |
Defrost device |
FD10091000 |
1000ml flask |
| FD1004 |
Refrigerant R404a, R502, R23 and etc |
FD1010 |
Leybold vacuum pump |
| FD1005 |
Oil mist filter |
FD1011 |
Touch LCD display |
| FD1006 |
Shelves heating & Program segment control
Can stored 16 programs, each program can be set up 36segments, correct program data in computing, memorize the drying curve |
FD1012 |
Anti-back oil device |
| FD1007 |
Additional trays (6pcs) |
FD1013 |
Eutectic point test device |
| FD1008 |
Removable lid for drying drum |
FD1014 |
Vial capper |
| FD1009100 |
100ml flask |
FD1015 |
Ampoules sealing machine |
