| Basic parameters |
Model |
RE-5003 |
RE-5003EX |
| Glass Material |
GG-17 |
GG-17 |
| Bracket Material |
Stainless steel |
304Stainless steel |
| Material of pot shell |
Spraying anticorrosion 710*620*700mm |
Spraying anticorrosion 710*620*700mm |
| Material of Pan gallbladder |
Stainless steel 550*320mm |
304Stainless steel 550*320mm |
| plate size |
804*574mm |
804*574mm |
| Rotating bottle volume |
50L ￠125Flange mouth |
50L ￠125Flange mouth |
| Collect bottle volume |
20L ￠60Flange mouth |
20L ￠60Flange mouth |
| vacuum degree |
0.098Mpa |
0.098Mpa |
| Rotating speed |
0-110rpm |
0-110rpm |

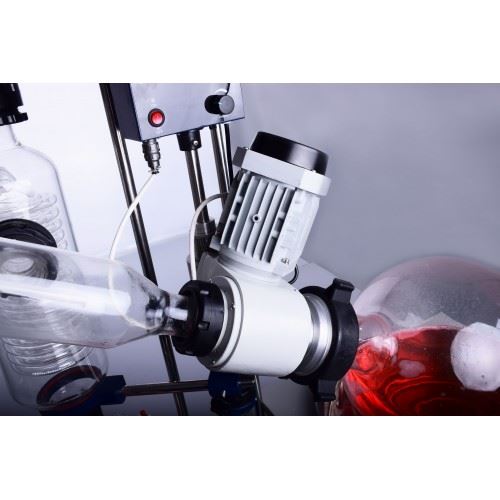

| Rotating power |
180W 220V/50Hz |
explosion-proof Electric machinery180W explosion-proofsignEXDIIBT4 220V/50Hz |
| Heating power of bathtub |
8KW 380V/50Hz |
8KW 380V/50Hz |
| Temperature control range of bathtub |
0-400°C |
0-400°C |
| control accuracy |
±1°C |
±1°C |
| Lifting trip |
180mm |
180mm |
| Shape size(mm) |
1520*620*2470 |
1520*620*2470 |
| Packing dimensions(mm) |
1450*390*440 1150*840*660 790*730*790 1.34square |
1450*390*440 1150*840*660 790*730*790 1.34square |
| Packing weight (KG) |
170 |
170 |
| Function Configuration |
Speed regulation mode |
frequency control |
explosion-prooffrequency controlexplosion-proofsignEXDIIBT4 |
| Speed display mode |
digital display |
digital display |
| Temperature Display Square |
KType 1 sensordigital display |
KType 1 sensordigital display |
| temperature control |
Intelligent Temperature Control |
Intelligent Temperature Control explosion-proofelectric control box explosion-proofsignEXDIIBT4 |
| Sealing method |
Tetrafluoro Component Sealing |
Tetrafluoro Component Sealing |

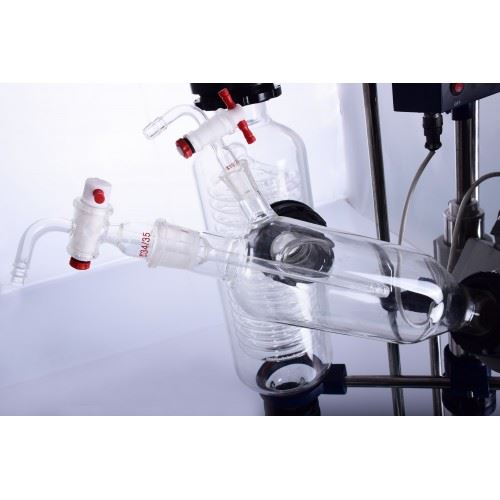

| condenser |
Vertical High Efficiency Three-Reflux Condenser，Main cooling160*840，Pay cold160*530 |
Vertical High Efficiency Three-Reflux Condenser，Main cooling160*840，Pay cold160*530 |
| Continuous collection |
Check valve control |
Check valve control |
| Lifting mode |
Manual lifting of bathtub |
Manual lifting of bathtub |
| Temperature measuring device |
19#Standard mouth |
19#Standard mouth |
| Continuous Feeds |
40#Label feeding valve |
40#Label feeding valve |
| Discharge square |
Tetrafluoride discharge valve，￠60Flange mouth |
Tetrafluoride discharge valve，￠60Flange mouth |
| Vacuum display mode |
Vacuum meter |
Vacuum meter |
