40~210kg/24hours, Flake Ice Maker, 5 reducer design, Multiple alarm display

Model: FIM Series

Features:

Small ice shape, granular amorphous ice, which can penetrate into the narrow space, effectual ice bath, specialized for laboratory.
Italy 5 reducer technology, well-known brand chillers, low noise

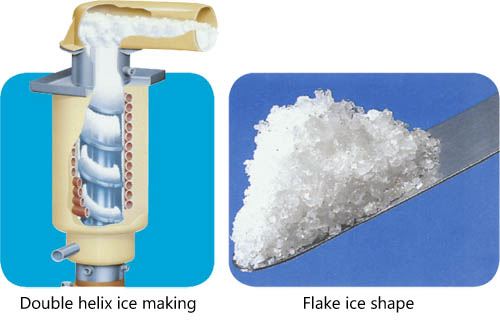

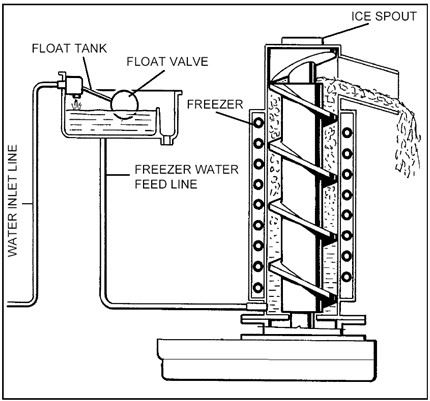

Double helix squeezes ice method, Small size to save space, reduce laboratory space occupied.
Stainless steel shell, beautiful and practical.
Fast & quality REFD & Ice making system, energy-efficient. Professional design of the refrigeration circuit, control system and the body parts, easy to use.
Microcomputer control systems, process monitoring, perfect protection.
Contingency design for power outage & cut off the water supply, the ice machine is running, even if a sudden power outage, no water anyway. When the water and electricity is restored, the ice maker will automatic to restore running from previous work status
Good ice storage performance, CFC-free polyurethane foam thickening of the box, ABS liner
Safety considerations, the ice machine is set leakage protection switch to ensure safe to use.
Front power switch, easy to use.

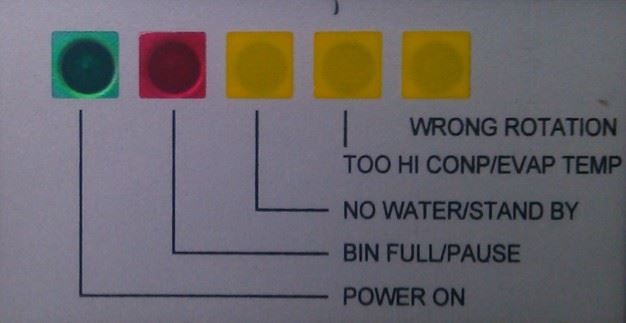

Microcomputer controller can show below:

ice display
water shortage
ice motor failure
condensing temperature display
lack of refrigerant display
Alarm indicator lights for machine failure, protective start until shutdown.
Automatic control & displays the entire ice-making process of the ice machine, reliable, smooth operation, easy maintenance.



Technical Parameters:

Model Ice amount
Kg/24h
Ice storage capacity
Kg
Water consumption
L/h
Dimensions
W*D*H(mm)
Power Compressor power (HP) Cooling Weight
kg
FIM40 40 15 1.9 480 × 480 × 720 220V 50Hz 400W 1/6 Air Cooled 66kg
FIM50 50 15 2.4 480*480*740 220V 50Hz 410W 1/6 Air Cooled 68
FIM70 70 30 3.0 580*550*880 220V 50Hz 430W 1/5 Air Cooled 75
FIM100 100 35 4.3 580*550*900 220V 50Hz 460W 1/4 Air Cooled 80
FIM130 130 40 5.5 580*550*920 220V 50Hz 480W 3/8 Air Cooled 83
FIM180 180 45 7.6 690*620*990 220V 50Hz 650W 5/8 Air Cooled 90
FIM210 210 60 8.9 690*620*990 220V 50Hz 720W 3/4 Air Cooled 98

– Ambient Temperature: 20°C, Water Temperature: 10°C, Water Pressure: 0.2 MPa
