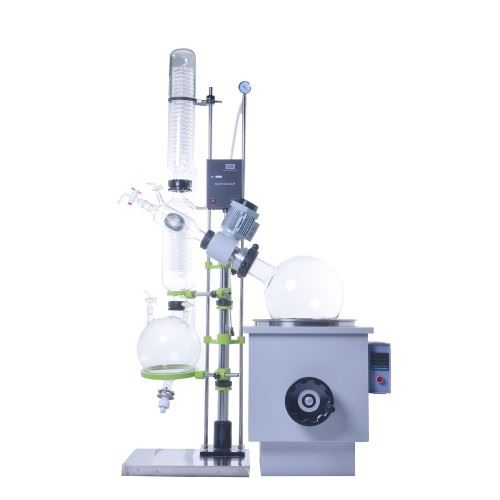

RE-1002 10 liters Rotary Evaporator, Rotovap
| Basic parameters |
Model |
RE-1002 |
RE-1002EX explosion-proof |
| Glass Material |
GG-17 |
GG-17 |
| Bracket Material |
Stainless steel |
304Stainless steel |
| Material of pot shell |
Spraying anticorrosion
490*430*540mm |
Spraying anticorrosion
490*430*540mm |
| Material of Pan gallbladder |
Stainless steel
350*220mm |
304Stainless steel
350*220mm |
| plate size |
474*474mm |
474*474mm |

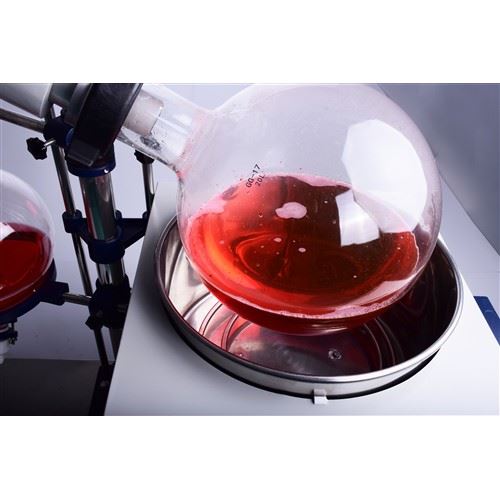

| Rotating bottle volume |
10L ￠95Flange mouth |
10L ￠95Flange mouth |
| Collect bottle volume |
5L ￠50Flange mouth |
5L ￠50Flange mouth |
| vacuum degree |
0.098Mpa |
0.098Mpa |
| Rotating power |
120W |
explosion-proof Electric machinery 120W explosion-proof sign EXDIIBT4 |
| Rotating speed |
0-110rpm |
0-110rpm |
| heating power |
3KW |
3KW |
| Temp. control range of bath |
0-400°C |
0-400°C |
| Voltage/frequency(V/Hz) |
220V/50Hz |
220V/50HzOptional380V |
| Lifting trip |
180mm |
180mm |
| Shape size(mm) |
970*480*1950mm |
970*480*1950mm |
| Packing dimensions(mm) |
1350*350*400
1280*570*660 0.67square |
1350*350*400
1280*570*660 0.67square |
| Packing weight (KG) |
100 |
100 |
| Function Configuration |
Speed regulation mode |
frequency control |
explosion-proof frequency control explosion-proof sign EXDIIBT4 |
| Speed display mode |
digital display |
digital display |
| Temperature Display |
KType 1 sensor digital display |
KType 1 sensor digital display |
| temperature control |
Intelligent Temperature Control |
Intelligent Temperature Control explosion-proofel EXDIIBT4 |
| Sealing method |
Tetrafluoro Component Sealing |
Tetrafluoro Component Sealing |

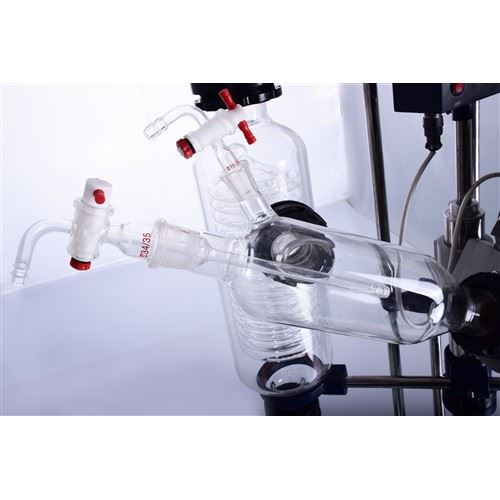

| condenser |
Vertical High Efficiency Three-Reflux Condenser, Main cooling120*640，Pay cold 135*470 |
Vertical High Efficiency Three-Reflux Condenser, Main cooling120*640，Pay cold135*470 |
| Continuous collection |
Check valve control |
Check valve control |
| Lifting mode |
Manual lifting of bathtub |
Manual lifting of bathtub |
| Temperature measuring device |
19#Standard mouth |
19#Standard mouth |
| Continuous Feeds |
34#Label feeding valve |
34#Label feeding valve |
| Discharge square |
Tetrafluoride discharge valve，￠50Flange mouth |
Tetrafluoride discharge valve，￠50Flange mouth |
| Vacuum display mode |
Vacuum meter |
Vacuum meter |
