| Model |

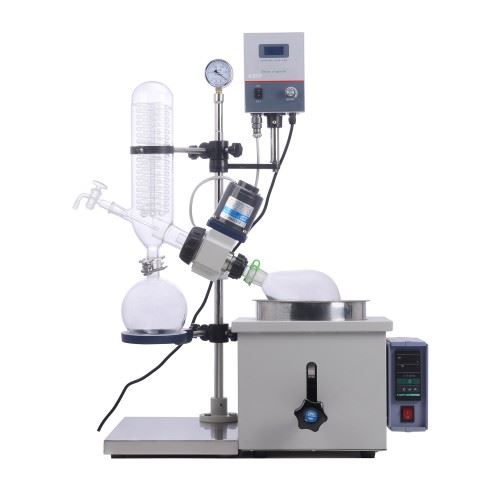

RE-201D |
| Glass Material |
GG-17 |
| Bracket Material |
Stainless steel |
| Material of pot shell |
Spraying anticorrosion 370*300*260mm |
| Material of Pan gallbladder |
Stainless steel 240*160mm |
| plate size |
255*330mm |
| Rotating bottle volume |
1L 24# Standard mouth |
| Collect bottle volume |
1L Ball mill mouth label |
| vacuum degree |
0.098Mpa |
| Rotating power |
30W |
| Rotating speed |
0-120rpm |
| heating power |
1.2KW |
| Temperature control range of bathtub |
0-400℃ |
| Rotating bottle volume |
±1℃ |
| Voltage/frequency(V/Hz) |
220V/50Hz |
| Lifting trip |
120mm |
| Shape size(mm) |
760*300*800 |
| Packing dimensions(mm) |
890*460*420 |
| Packing weight (KG) |
21 |
| Speed regulation mode |
e-cvt |
| Speed display mode |
digital display |
| Temperature display mode |
K Type 1 sensordigital display |
| temperature control |
Intelligent Temperature Control |
| Sealing method |
Tetrafluoro Component Sealing |
| condenser |
Vertical condenser80*370mm Ball mill mouth label |
| Lifting mode |
Manual lifting of bathtub |
| Continuous Feeds |
19#Label feeding valve |
| Vacuum display mode |
Vacuum meter |
